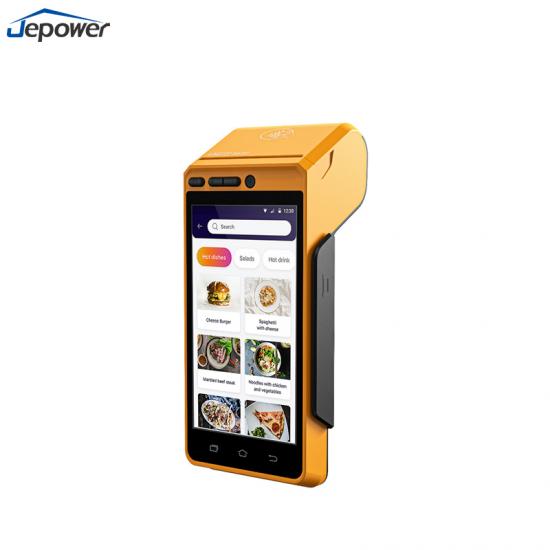

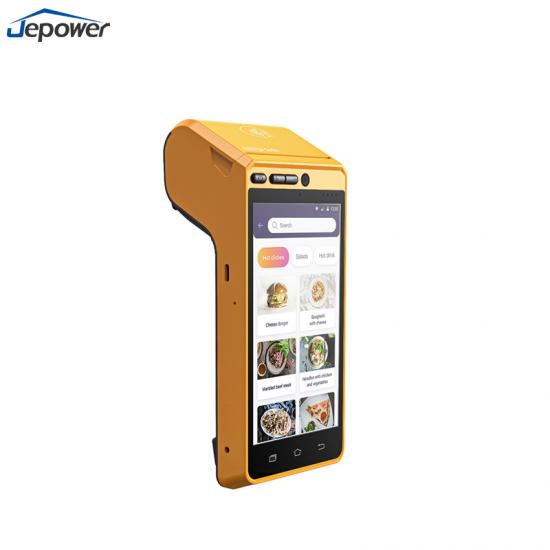

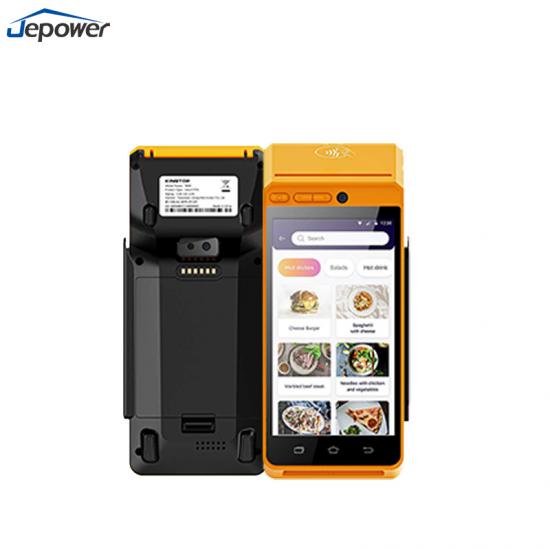

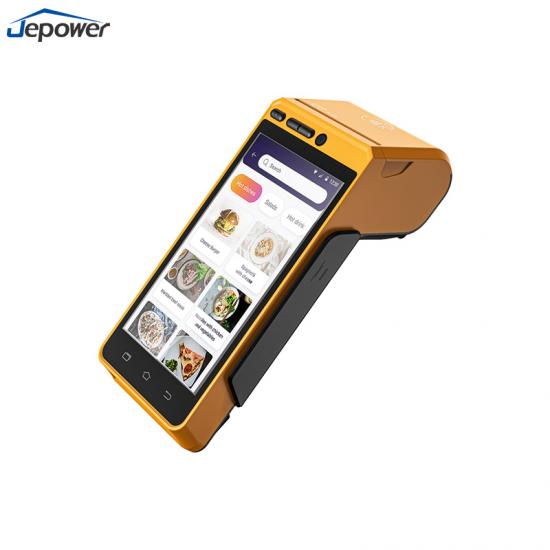

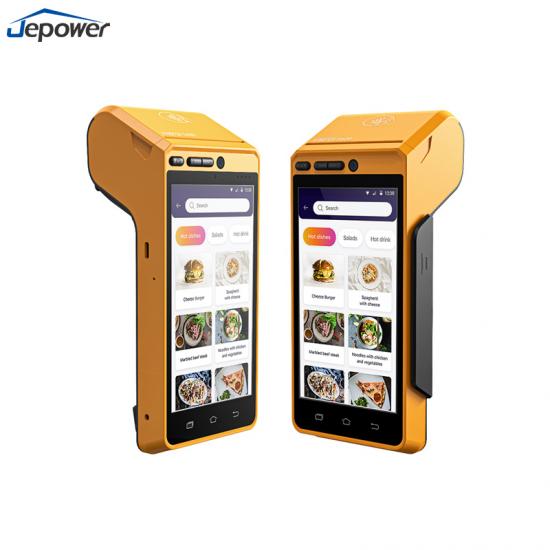

5.5inch Financial POS Terminal electronic fiscal device dual screen pos systems smart nfc hardware printer pos terminal

General

State Secrets

Yes

Symmetry algorithms: DES, TDES, AES-128/192/256, SM4 Asymmetric algorithms: RSA-1024/2048,  SM2

HASH verification algorithm: SHA-1/224/256/384/512,  SM3

National Secret Chip MH1721 design reserved

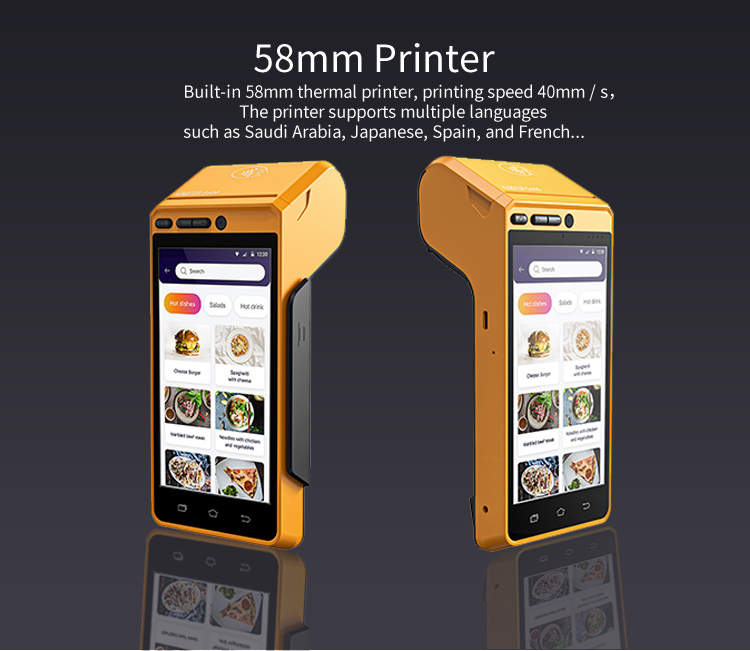

Printer

High-voltage, high-speed thermal printer

The width of the paper roll is 58mm，

The diameter of the paper roll is 40mm

2 inch high voltage high speed thermal

printer,

Support thermal bill printing and black mark printing,

Support barcode proofing and picture proofing,

The printing speed is 120mm/sec

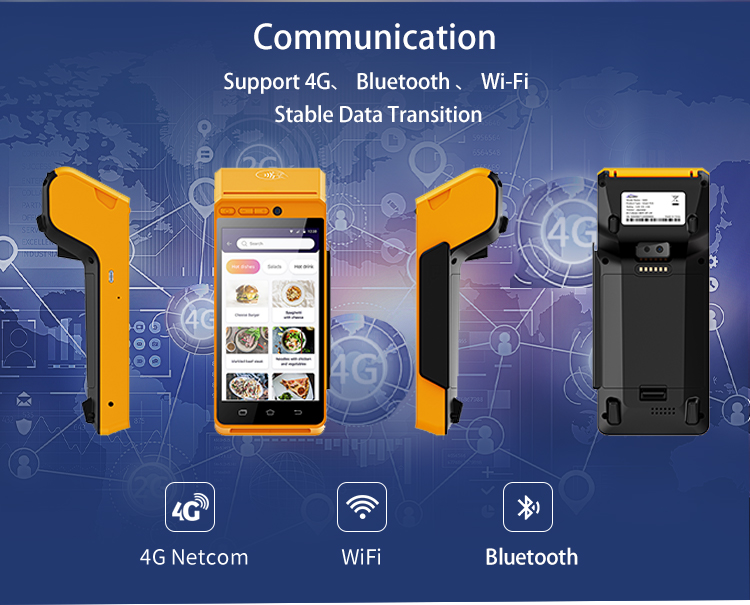

2G/3G/4G Network

TDD-LTE FDD-LTE

Eurasian version:

FDD-LTE:B1/B3/B5/B7/B8/B20/B26/B28

TDD-LTE:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM/EDGE/GPRS：850/900/1800/1900

Latin American version:

FDD-LTE:B2/B4/B5/B7/B12/B13/B14/B17/B28 TDD-LTE:B38/B39/B40/B41 WCDMA：B2/B4/B5/B8 GSM/EDGE/GPRS：850/900/1800/1900

WLAN

WIFI

2.4G&5GHz ， IEEE 802.11  ac/a/b/g/n

Bluetooth

BT5.0 + BR/EDR + BLE

GNSS

Yes

Support GPS, AGPS, GLONASS

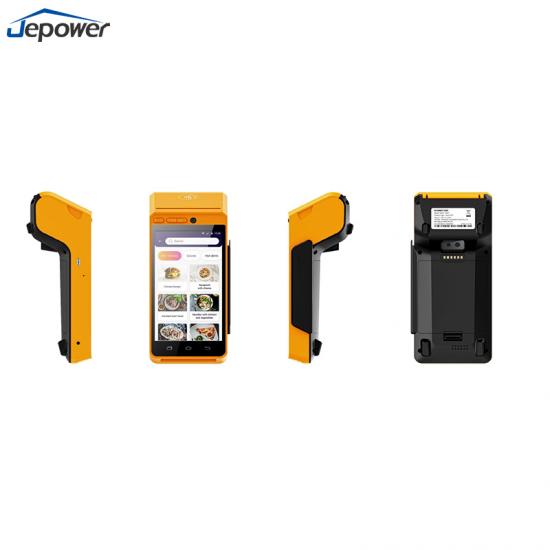

Design

Design (dimension) (L x W x H mm)

190*80*64.5mm

ID scheme determined

Form factor

OEM and ODM acceptable

Function keys on the top

Yes

power key on [top] or [side]

top

Physical buttons: PowerVolume+Volume-

volume keys on the [right side]

or [Left side]

No

Function keys on the [right side]

or [Left side]

No

Key on TP

Yes

touch keys [e.g: default: back,

home, multitask]

Yes

Virtual button icon order: Menu key, Home, Back

key

LED charging indicator [default:

Yes]

No

Touch Key backlight [default:

Yes]

No

Weight with battery (g)

250

Weight without battery (g)

TBC

NFC on [top] or [botton]

top

Front underneath

Magnetic stripe card on [top] or

[right]

Right side

IC card on [top] or [right] or [botton]

botton

Printer [top] or [botton]

top

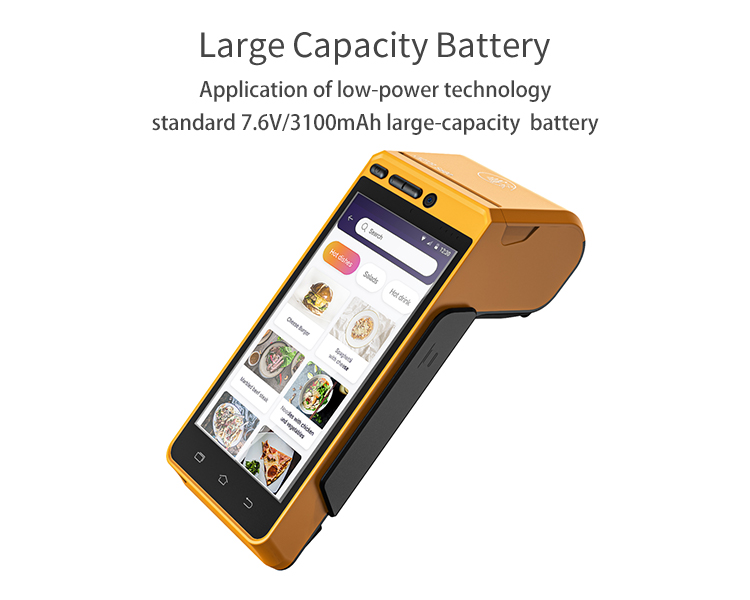

Battery cover

7.6V 3100mAh/26.95Wh

Large capacity, detachable polymer  lithium-ion

battery,

The battery complies with UN38.3 and MSDS related certifications

MCU Battery

3V /210mAh Li-Manganese Coin Cell CR2032

3V /210mAh Li-Manganese Coin Cell CR2032 Open circuit voltage: ≥3.25V

Instantaneous short-circuit current: ≥200mA Discharge capacity: ≥295h

Extend

(please insert new lines in case

you need more space)

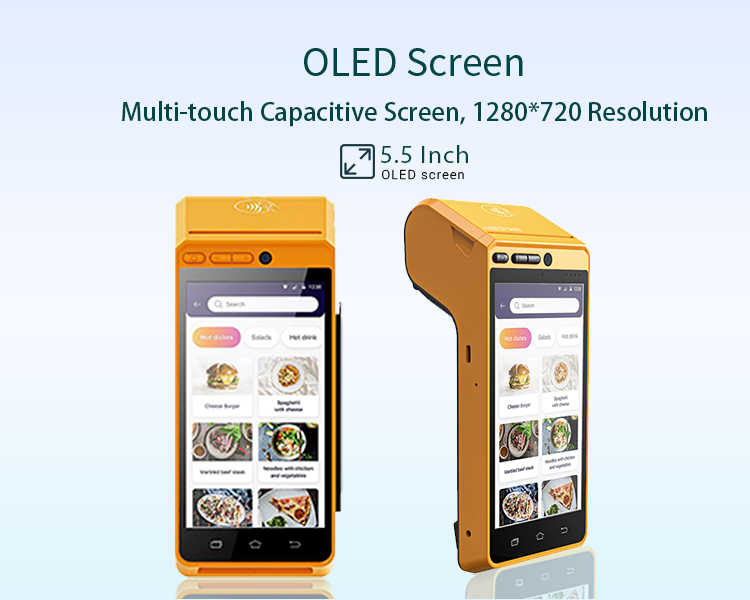

Display

Main display size inch

5.5"

Main display resolution

HD 720x1280

Main display technology

IPS

Display Type

TFT-LCD

PPI  [ PPI=√（X^2+Y^2/Z ,

X：Length's pixels of LCD, Y： Width's pixels of LCD, Z：LCD size,

e.g: 4.5 inch Qhd, PPI=√

（540^2+960^2/4.5]

Contrast ratio

contrast > 600

Brightness

380 average

Viewing angle

IPS

Touch Panel Material

G+FF

Thickness of touch panel

Within 1.2mm

Main Display Orientation

Portrait screen

Multi-touch capabiliity

5 point ,38 channel

Touch Icon position

middle

Extend

(please insert new lines in case

you need more space)

Ports

SIM Card Number

2

2 x SIM card (25mm×15mm)

The size of the standard SIM card is: 25mm × 15mm;

The size of the Micro SIM card is: 12×15mm; Nano SIM card, dimensions: 12mm x  9mm;

PSAM

2

2 x standard PSAM decks; PSAM supports 1.8V/3V/5V,

Comply with ISO7816  specifications

One of the PSAM cards is compatible with a SIM card and is engraved with a logo on the shell

USB

Micro USB v2.0 High Speed;

Type-C, support OTG, use 5V charger 2A;

Type-C

Yes

Audio Jack

Yes

1 x standard round hole 3.5mm headphone jack, defined by Huawei headphones

Speaker

1

1 x Dual Magnetic 2030 Speaker, rated power 1.5W,

5cm distance, loudness 95dB or  more

HDMI

No

DC IN

No

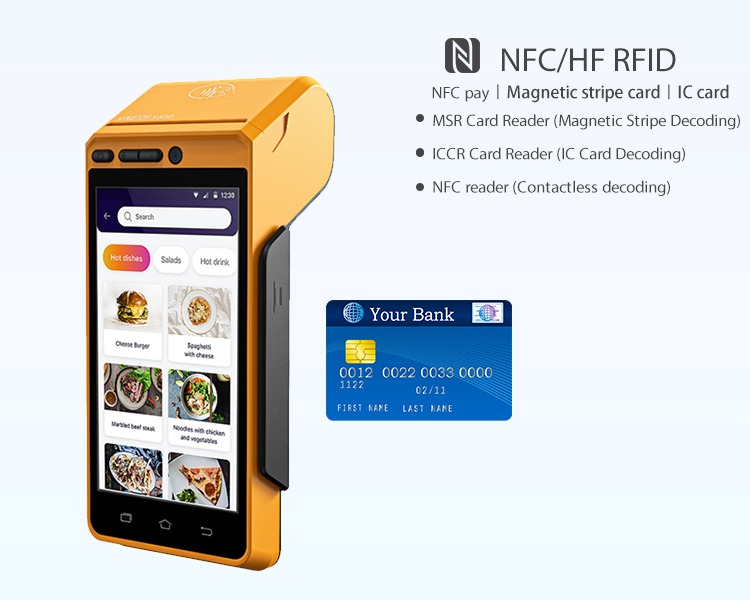

Magnetic stripe card

Yes

1/2/3 tracks, 3 tracks

Support two-way card swiping (shell non-silk screen  logo), Support three-track magnetic card, support two-way card swiping Swipe speed 10cm-100cm

Comply with ISO7810, ISO7811, and ISO7812  specifications

IC card

Yes

CPU cards, memory cards, synchronization cards, and asynchronous cards are  supported Compliant with EMV, PBOC, ISO7816 specifications

DES/3DES/RSA is

supported

NFC

Yes

SUPPORT 13.56MHZ,

Support ISO/ICE14443, ISO15693 standards TypeA&B is supported

Printer

Yes

Mic

Yes

Extend SD

Yes

(please insert new lines in case

you need more space)

Memory

ROM

16GB/32GB

RAM

2GB

TF Card Slot

No

Total internal user available

(TBC)

Connectivity

Connectivity list

Use the data network, but ensure the speed of finding the network, you can't turn off the voice channel, you can only block the voice

2G Data

GSM 900/1800

3G Data

WCDMA 2100

4G Data

TDD-LTE/FDD-LTE

GPS

YES

Bluetooth support

YES

BT5.0

Bluetooth profile [default

profile: Headset|data transfer|A2DP|EDR]

Headset;data transfer;A2DP;EDR

Headset;data  transfer;A2DP;EDR

WLAN

2.4G&5GHz ，支持IEEE

802.11 ac/a/b/g/n

WIFI tethering

No

WIFI direct

No

NFC

Yes

USB

Micro USB v2.0 High Speed;

POGOPIN

Yes

From left to right: 5V, GND, TX, RX, DP, DM

USB OTG Capability

Yes

Dc

Yes

Extend

(please insert new lines in case

you need more space)

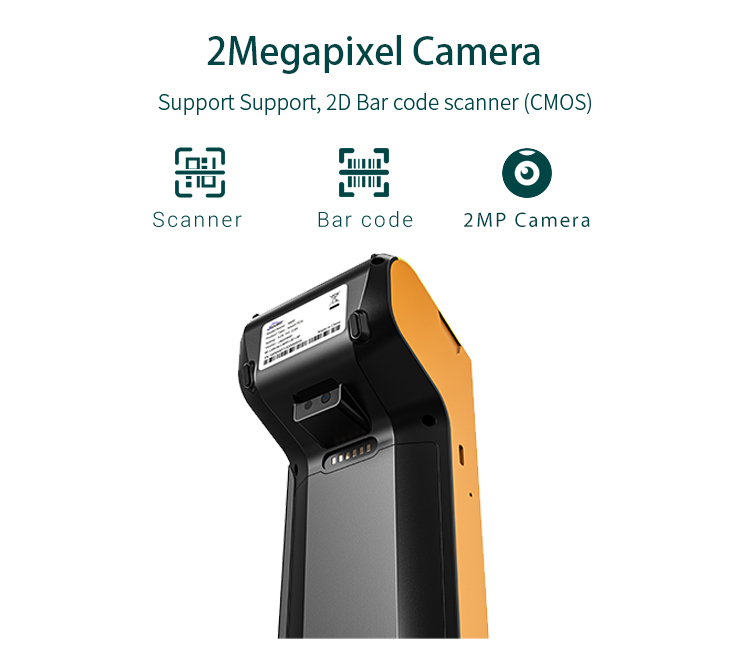

Camera

Primary Camera

Front 2M FF Rear  5M FF

Support one-dimensional code and two- dimensional code

Front Camera

Yes

Auto focus

Yes

Extend

(please insert new lines in case

you need more space)

Battery

Capacity

7.7V 3100mAh/26.95Wh

Standby time

12 hours

Endurance supports 500 transactions per day

Charging time [Hours]

3.5 hours

Internet use time 3G  [Hours]

Internet use time Wi-Fi [Hours]

Extend

(please insert new lines in case

you need more space)

Sensors

Sensor list

G-sensor

No

Light sensor

No

Extend

(please insert new lines in case

you need more space)

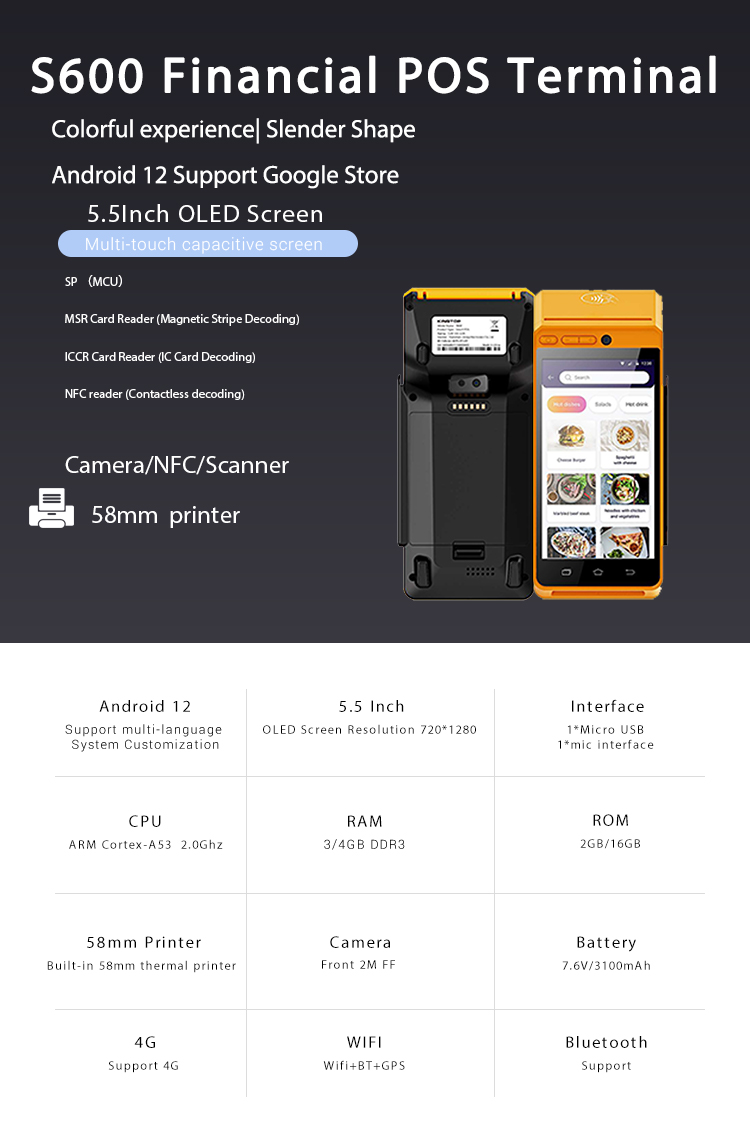

S600

Certification

UPTS

Optional

Security certifications

China

UnionPay card accepts terminal product security certification

Fintech Product Certification

Optional

Security certifications

China

State Cryptography

Certification

Optional

Security certifications

China

ABECS

Optional

Security certifications

Brazil

APCA

Optional

Security certifications

Australia

Common.SECC

Optional

Security certifications

Europe

PCI PTS

YES

Security certifications

all over the world

PCI PIN

YES

Security certifications

all over the world

EMV L1

YES

Card Authentication

all over the world

EMV L2

YES

Card Authentication

all over the world

EMV CL L1

YES

Card Authentication

all over the world

Mastercard-Paypass

YES

Card Authentication

all over the world

Visa-Paywave

YES

Card Authentication

all over the world

Discover-DPAS

YES

Card Authentication

all over the world

Mastercard-TQM

YES

Card Authentication

all over the world

QUICS

Optional

Card Authentication

all over the world

RU-PAY

Optional

Card Authentication

India

AMEX Expresspay (AE)

Optional

Card Authentication

United States

J-Speedy (JCB)

Optional

Card Authentication

Japan

PBOC L1

Optional

Card Authentication

China

PBOC L2

Optional

Card Authentication

China

QPBOC L1

Optional

Card Authentication

China

QPBOC L2

Optional

Card Authentication

China

PURE

Optional

Card Authentication

Singapore

FLASH

Optional

Card Authentication

Canada

MIR

Optional

Card Authentication

Russia

RUPAY

Optional

Card Authentication

India

Anatel

Optional

Safety certification

Brazil

BIS ，WPC

Optional

Safety certification

India

RCM

Optional

Safety certification

Australia

CE,ROHS, GCF

Optional

Safety certification

Europe

FCC,UL,PTCRB

Optional

Safety certification

United States

CB，UL

Optional

Safety certification

all over the world

CCC,SRRC,CTA

Optional

Safety certification

China

fittings

Power adapter

Standard

DC 5V/2A

Charging cable

Standard

Type-C interface: 1m charging + data communication  cable

Thermal printer paper

Standard

Thermal printer paper φ40*57mm

Instructions

Standard

Support the content of the manual customized by the  customer

Use environment

Ingress protection

Environmental reliability and mechanical reliability tests passed, no safety   trigger!

Operating temperature

0℃～ 50℃

Storage temperature

-20℃～ 70℃

relative humidity

5%～95%（Non-condensing）
